Highlighting Estimated Tasks

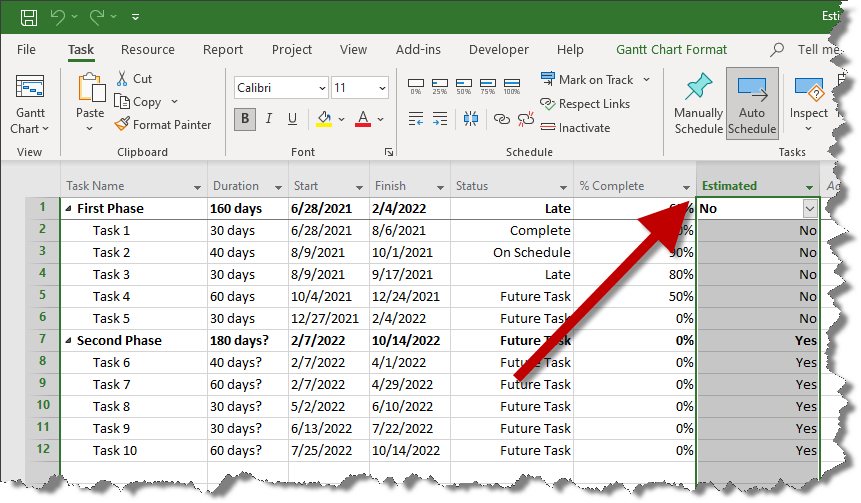

The Estimated field in Microsoft Project lets you identify tasks for which dates aren’t yet set in stone:

Simply place a “Yes” next to tasks that are estimated, and leave everything else alone. If you want to make a distinction between estimated and firm tasks in your OnePager chart, you can do so with conditional formatting.

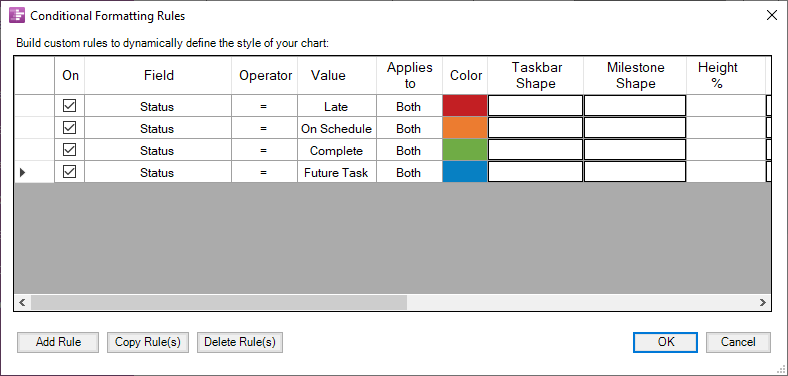

To launch conditional formatting, go to Home > Chart Properties > Task Bars, and then click the Manage Rules button in the bottom. We’re starting out with some conditional formatting rules that assign different colors based on the Status field:

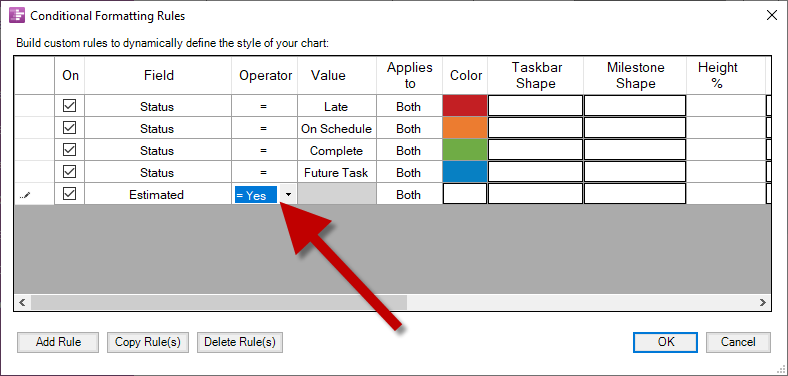

A lot of beginner OnePager users assume that conditional formatting can only used for color, or that conditional formatting can only look at one Microsoft Project field at a time. Both of these assumptions are incorrect. Even though we already have a set of rules that assign color based on status, we can add a separate rule that looks for tasks where the **Estimated** flag field is true:

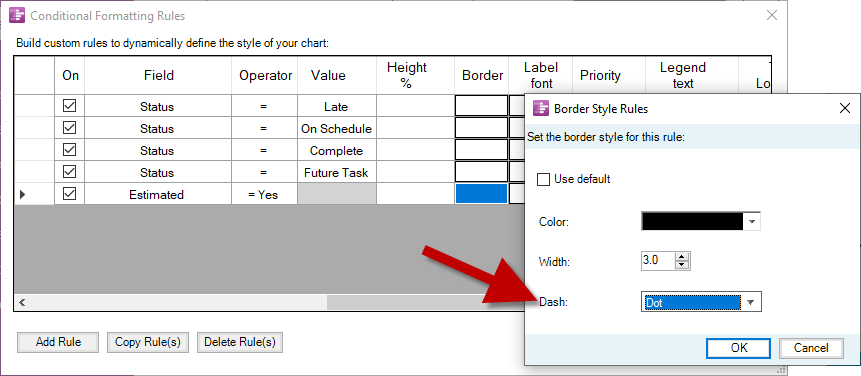

Once you’ve set up the condition, scroll to the right and assign a dotted border, like this:

Click OK on the border selector, and you’ll see the dotted border appear in the conditional formatting grid:

Click OK to close the Conditional Formatting Rules screen, and then click OK again to close Chart Properties. Your chart will update so that all estimated tasks appear with a dotted black border, while still retaining their main colors that are based on status:
